省電型電磁閥控制模組
Models: PA, PB, PAB, PBB Series
PA、PB、PAB 和 PBB節能型電磁閥控制盒/模組，可降低線圈溫度和功耗，因應氣候變遷能源法規。輕鬆整合融入設置，符合業界規範，縮短開發時間； 此外，也延長了電磁閥的產品壽命和性能
產品描述:

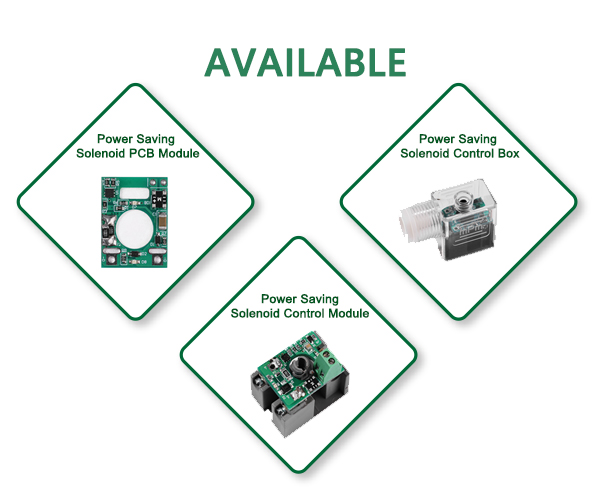

Green and Power Saving Available
Equivalent Full Range Temperature Coefficient 30ppm/ ºC
Temperature-Compensated for Operation over Full Rated Operating
Adjustable Hold on Current and Power Delay Hold on Switch Timing
Low Output Noise
Fast Turn-on Response
RoHS Compliant, 100% Pb & Halogen Free
應用:
Solenoid Valve
Valve Terminal
Electric locks
Switchgear
規格:
12/24VDC(-10%/+10%) Operating Vcc Range
Pulse Output Current : 1200mA max.
Continue Output Current : 500mA max. (Adj.)
Power Saving Ratio : high to 80%(note1)
Power Saving Covert Time 0~999mS Adj.(+/-10%)
No EMI & Magnet Loss , Thermal Reduce
No magnetic noise during operation
Operating temperature -20C ~ 60C
DIN43650 Type A connector
Module Model : PA Series
Note1 : depends on coil specification & solenoid on/off timing
Note2 : Under harsher and unstable power supply environments, the new design change will strengthen power protection, and it will not affect the original function.
規格:
12/24VDC(-10%/+10%) Operating Vcc Range
Pulse Output Current : 500mA max.
Continue Output Current : 200mA max. (Adj.)
Power Saving Ratio : high to 80%(note1)
Power Saving Covert Time 0~999mS Adj.(+/-10%)
No EMI & Magnet Loss , Thermal Reduce
No magnetic noise during operation
Operating temperature -20C ~ 60C
DIN43650 Type B connector
Module Model : PB Series
Note1 : depends on coil specification & solenoid on/off timing
Note2 : Under harsher and unstable power supply environments, the new design change will strengthen power protection, and it will not affect the original function.
規格:
12/24VDC(-10%/+10%) Operating Vcc Range
Pulse Output Current : 1200mA max.
Continue Output Current : 500mA max. (Adj.)
Power Saving Ratio : high to 80%(note1)
Power Saving Covert Time 0~999mS Adj.(+/-10%)
No EMI & Magnet Loss , Thermal Reduce
No magnetic noise during operation
Operating temperature -20C ~ 60C
Module Model : PA Series
Note1 : depends on coil specification & solenoid on/off timing
Note2 : Under harsher and unstable power supply environments, the new design change will strengthen power protection, and it will not affect the original function.
規格:
12/24VDC(-10%/+10%) Operating Vcc Range
Pulse Output Current : 500mA max.
Continue Output Current : 200mA max. (Adj.)
Power Saving Ratio : high to 80%(note1)
Power Saving Covert Time 0~999mS Adj.(+/-10%)
No EMI & Magnet Loss , Thermal Reduce
No magnetic noise during operation
Operating temperature -20C ~ 60C
Module Model : PB Series
Note1 : depends on coil specification & solenoid on/off timing
Note2 : Under harsher and unstable power supply environments, the new design change will strengthen power protection, and it will not affect the original function.
